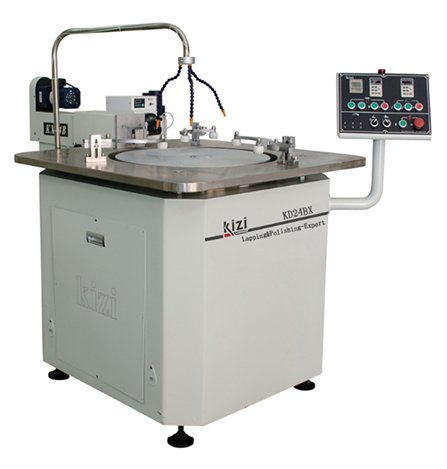

KD24BX

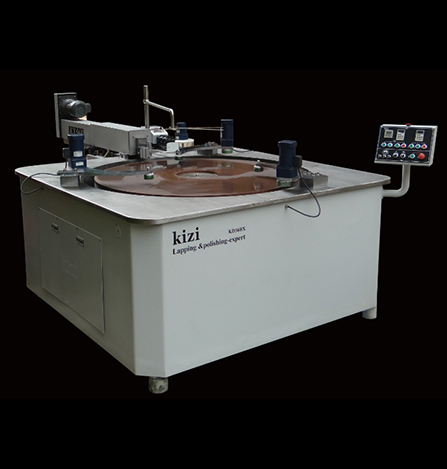

B Series single side lapping and polishing machine
DescribeParameterMatchingSample


It can be used for high precision and small amount of lapping processing

Application:

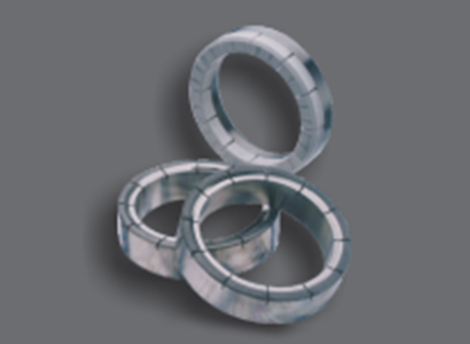

This series products is designed and produced for single surface lapping and polishing stainless steel, mold steel, air pressure, hydraulic pressure, seal pieces all kind of hardware components ect metal and non-metal material.

Machine Principle:

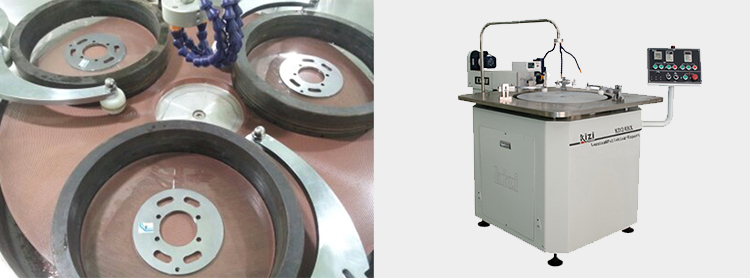

The lapping machine is single-sided precision lapping and polishing machine. The workpiece need to be lapped and polished is placed on the lapping plate. The plate rotates counter-clockwise. The workpiece rotates by friction force, and the pressure is applied on the workpiece by the clump weight. The workpiece and the lapping plate do relative friction motion to achieve the purpose of lapping and polishing the workpiece.




Features:



Frequency converting control, realize the soft start, rigid impact is small;


Automatic charging device, better save material cost and conform to the requirements of environmental protection;


Using the Janpan "NSK" shafting and "Siemens" power plant components, to ensure the stability of machine tools, precision and durability.

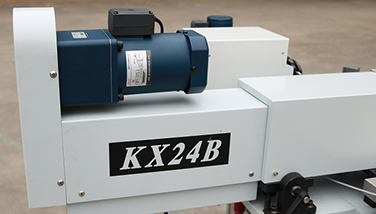

This unit is equipped with KX series of precision fix plate machine, the plate can be repaired in a short period of time to be a best flatness +/-0.002mm, besides opening process groove in  accordance with the requirements in the mill working face grinding/polishing process, the unit can select application mill cooling systems according to the application requirements, can avoid affecting the grinding/polishing quality due to the high temperature.



Optional models：

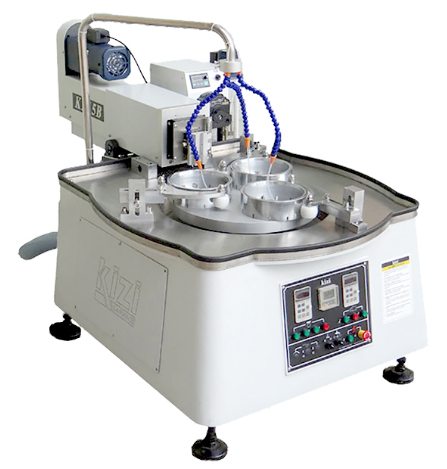

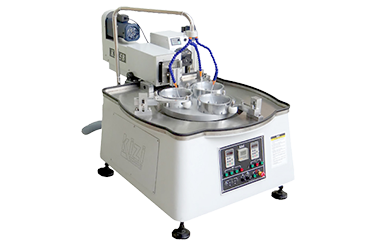

  • KD15BX

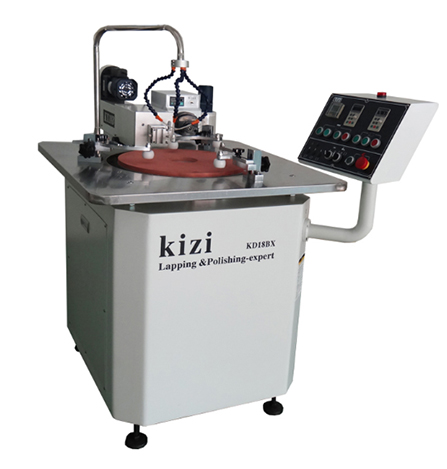

  • KD18BX
  • KD24BX

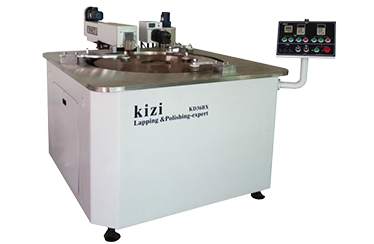

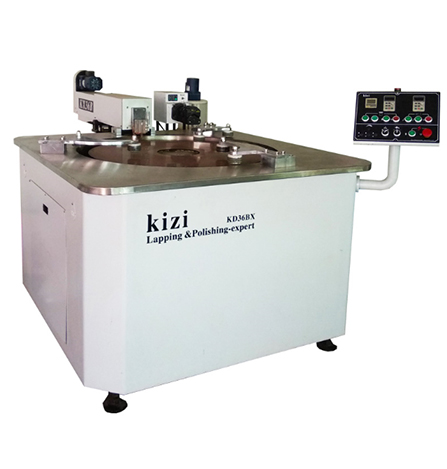

  • KD36BX

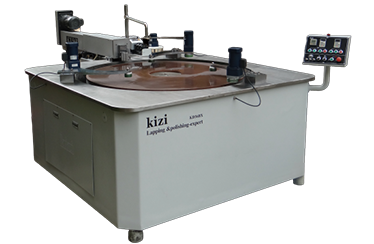

  • KD56BX
